Installing Your Blocks

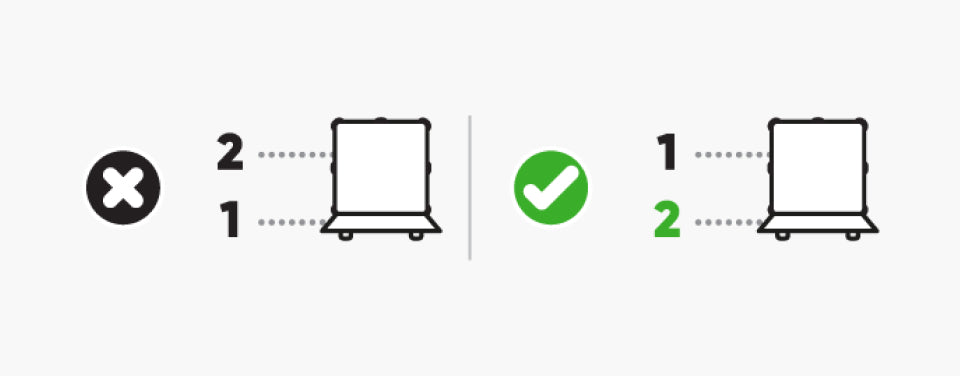

Choose the appropriate shelf installation method based on where your shelf sits in your layout relative to other Blocks panels.

• If your shelf will sit below a panel, refer to Installation Method A
• If your shelf will sit in between two panels, refer to Installation Method B
• If you shelf will sit above a panel, refer to Installation Method C

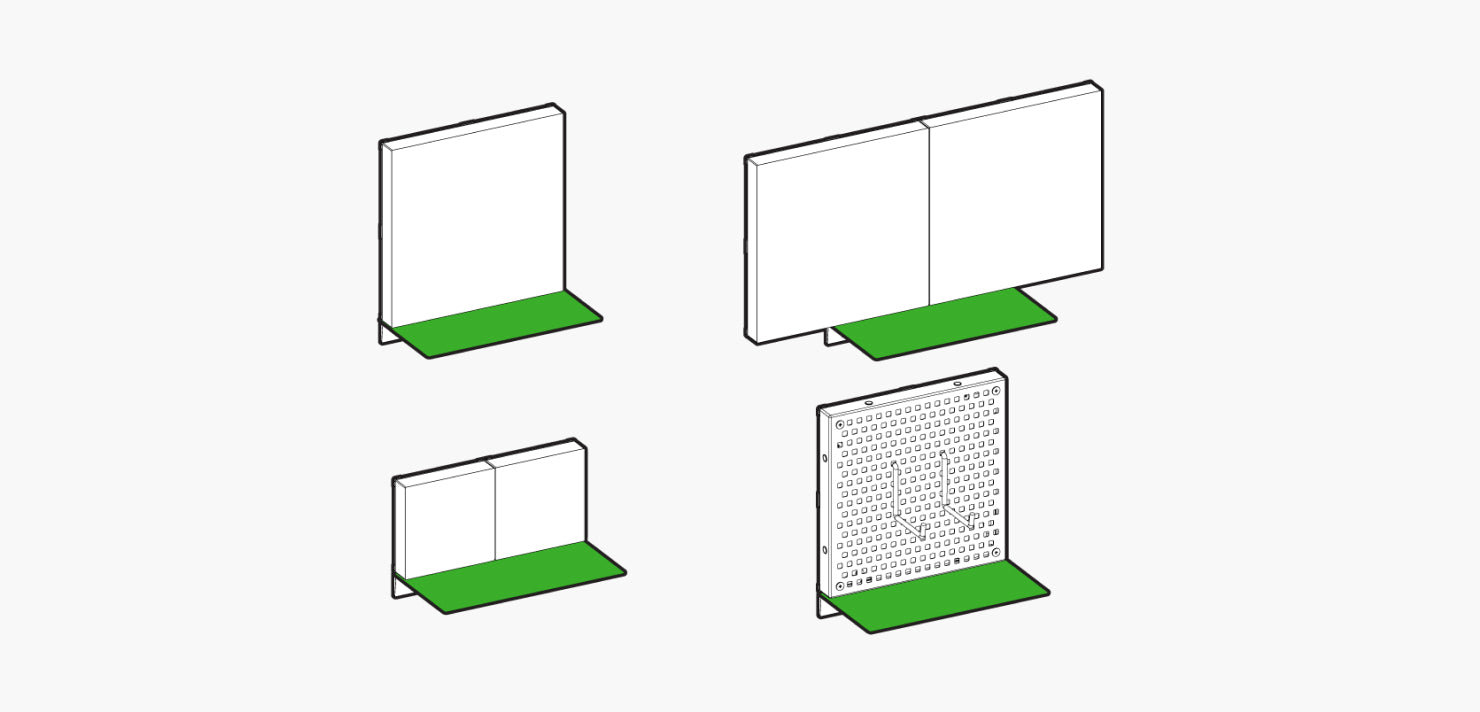

For shelf installations at the bottom of a layout. Use this method if no panels will be placed underneath your shelf.

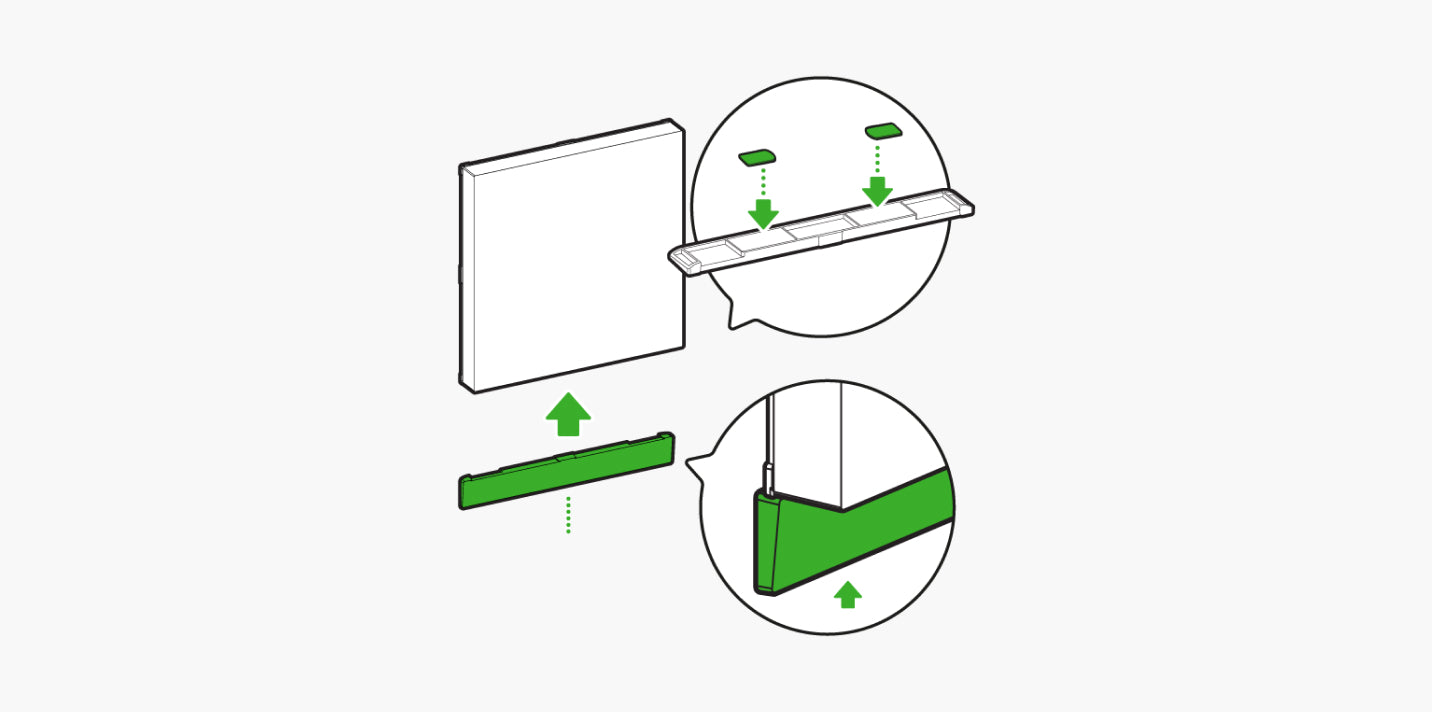

1. Add shelf cover mounting tape to the back of your shelf cover. Remove the protective liner from the tape and mount the shelf cover directly underneath the light panel you will be installing your shelf below. Ensure that there are no gaps in between.

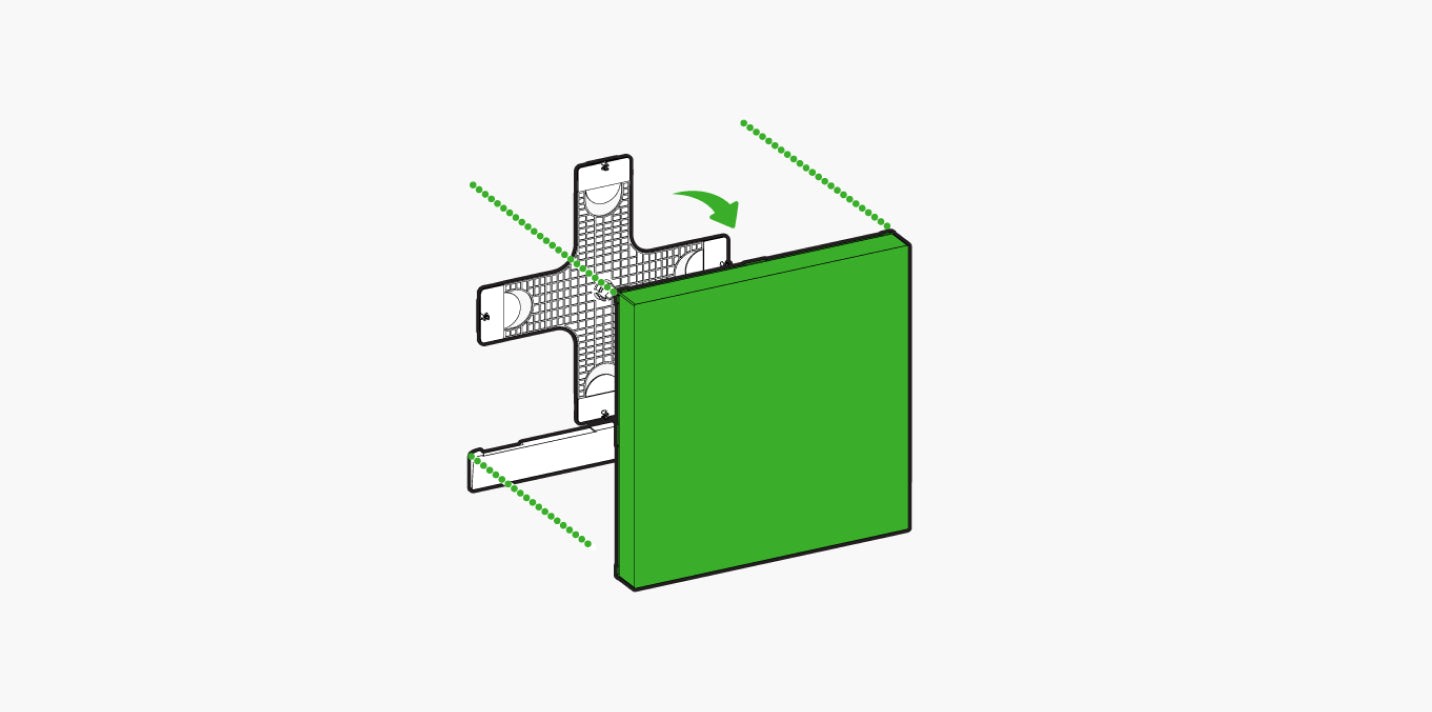

2. Pull off the panel gently, leaving the mounting plate and shelf cover attached to the wall.

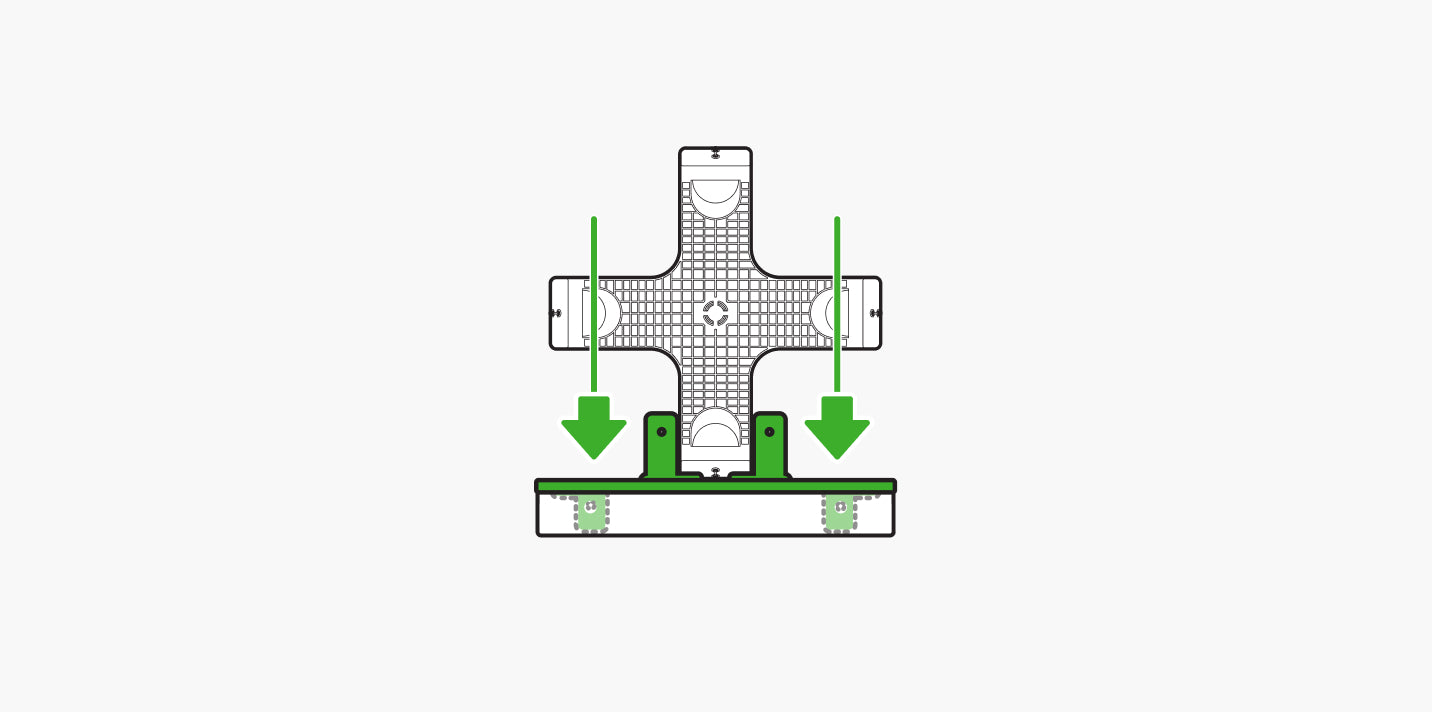

3. Slide the short prongs of the shelf into the shelf cover.

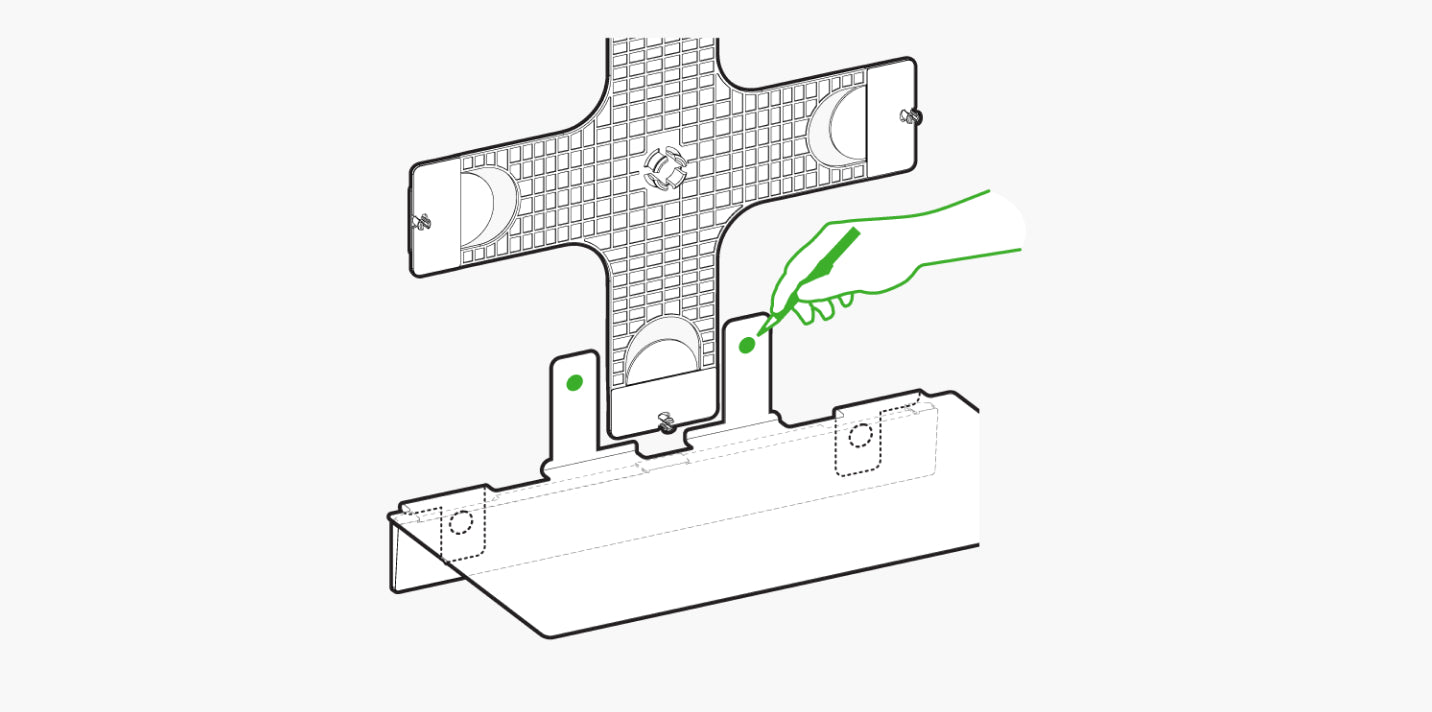

4. Use a pencil to mark the two top holes in the shelf - this is where the anchors will go.

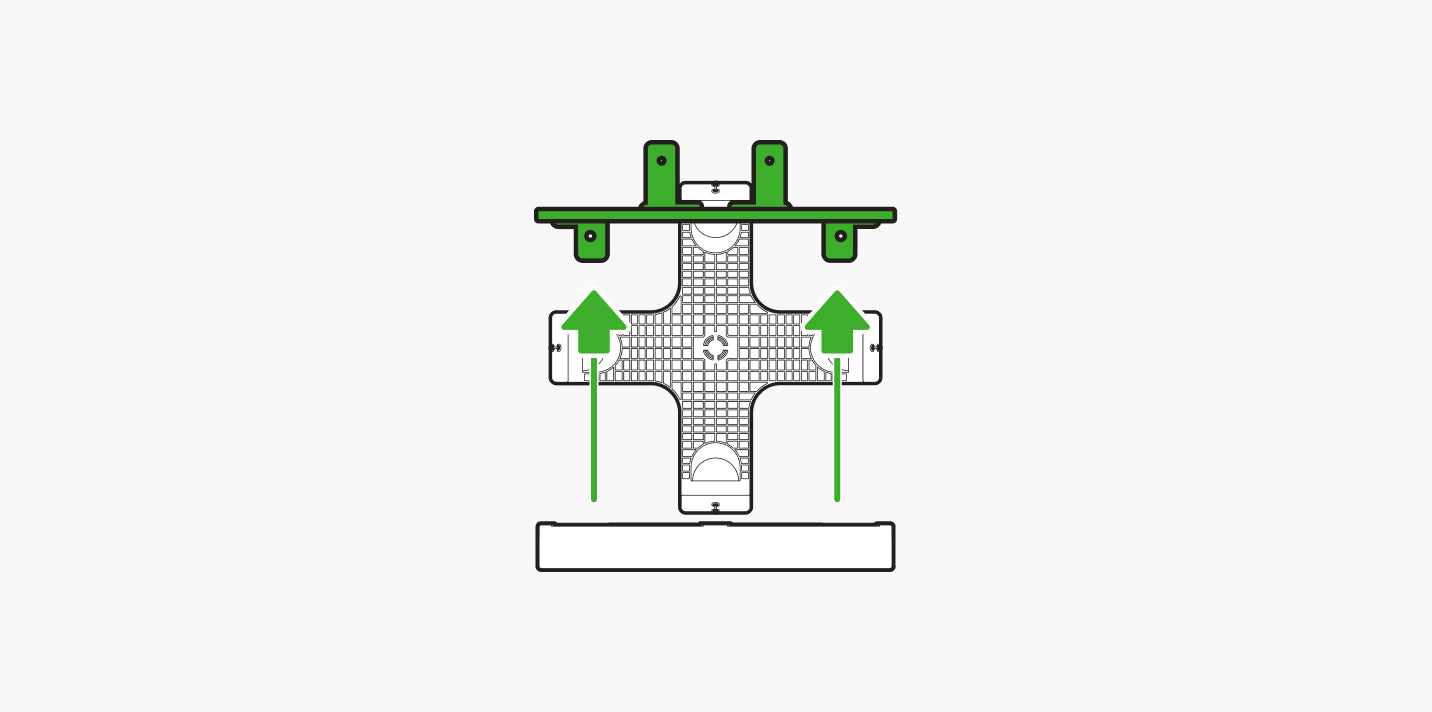

5. Slide the shelf out from the shelf cover.
6. Drill holes into the marked areas on the wall.
7. Screw anchors into the drilled holes. For concrete walls, use concrete anchors. For drywall, use drywall anchors.

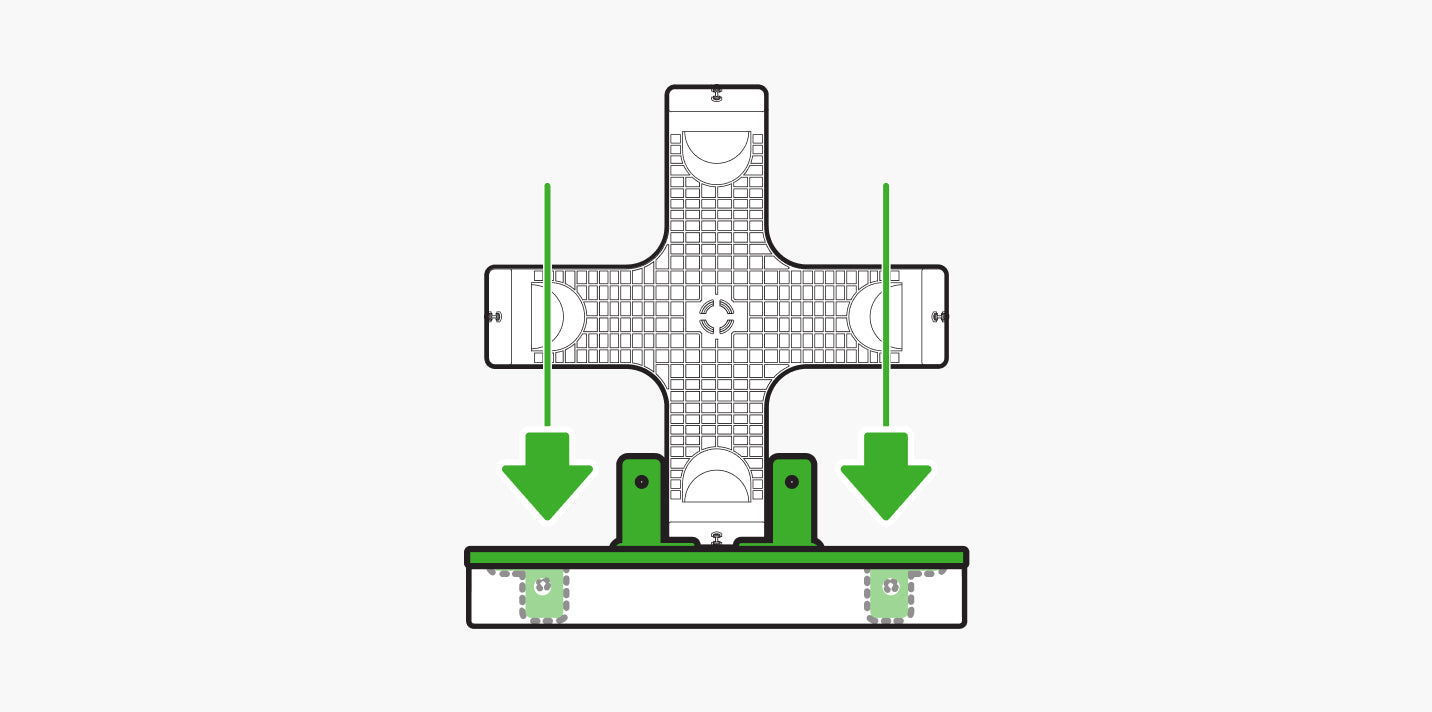

8. Place the shelf back into the shelf cover

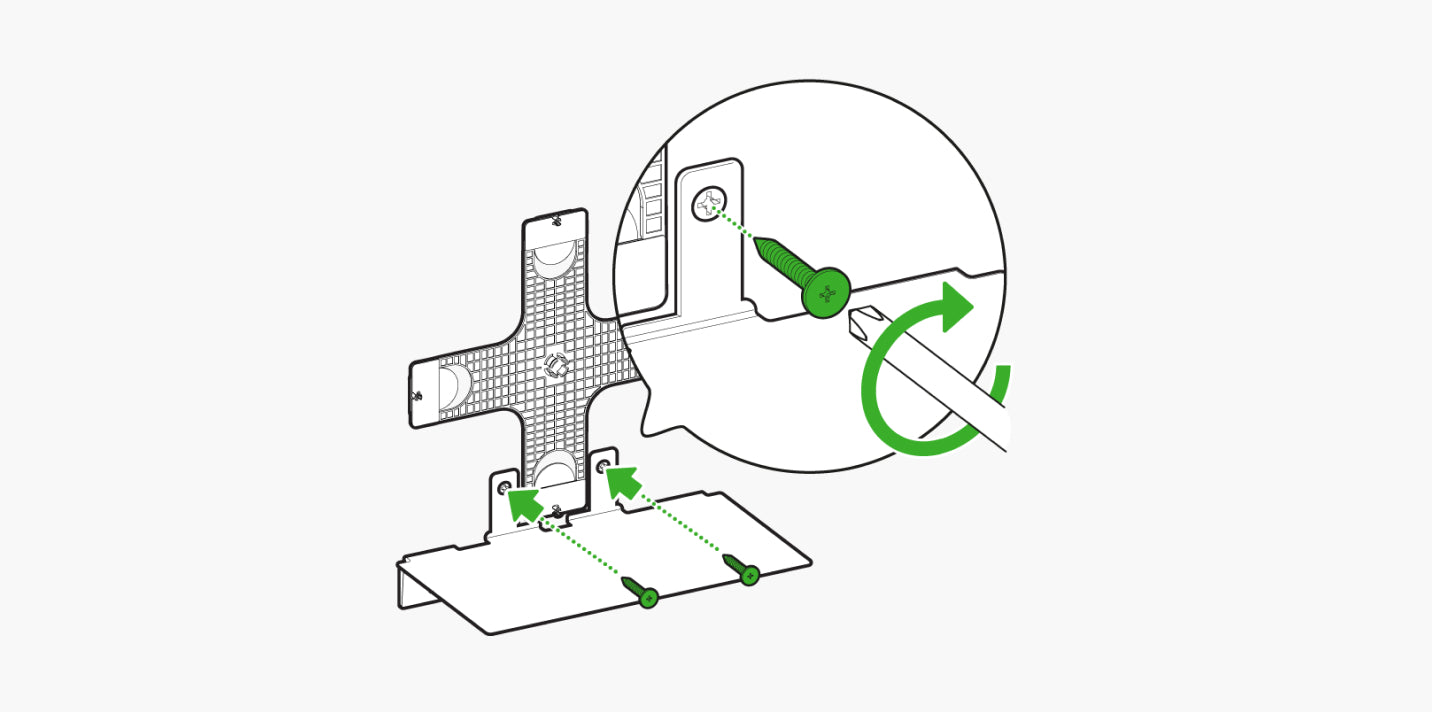

9. Drive the screws into the anchors, securing the shelf in place. Ensure that the screws are driven in all the way so they do not interfere with your layout.

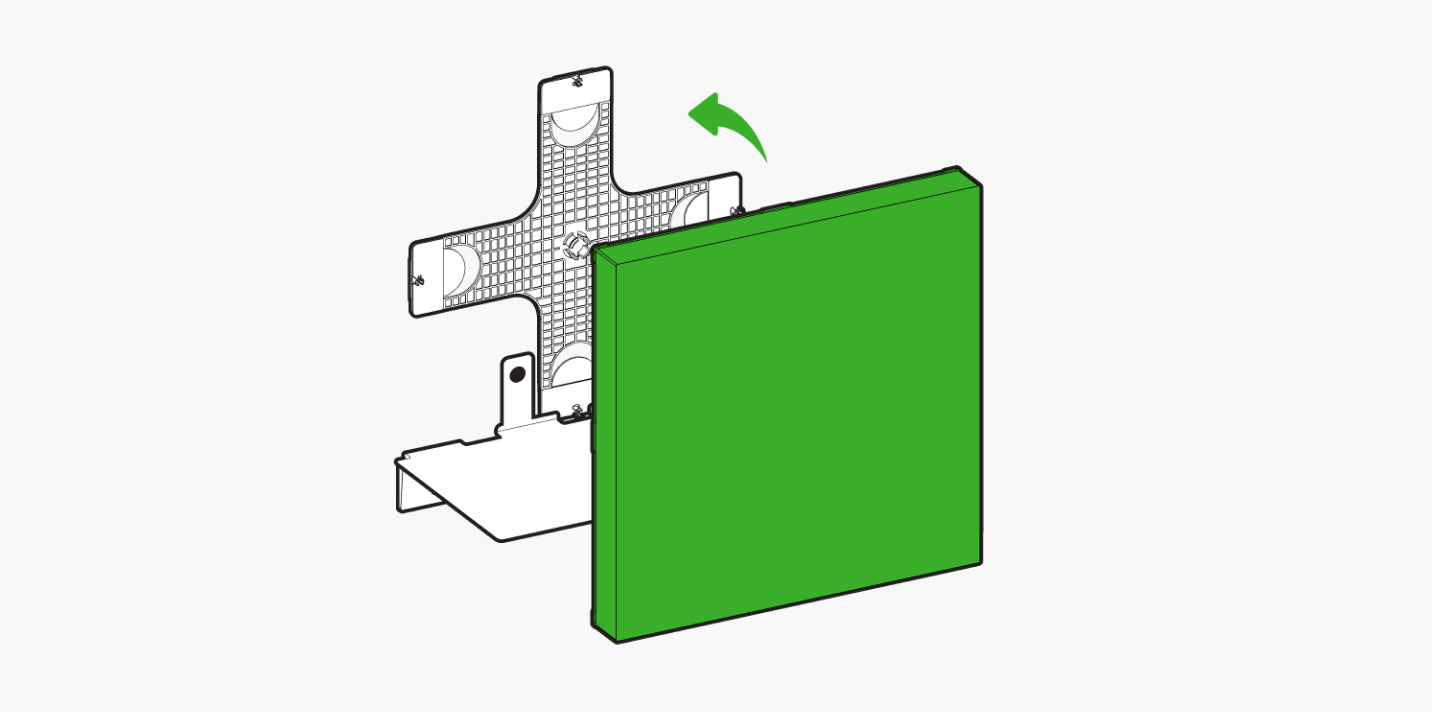

10. Reattach the light panel back onto its mounting plate.

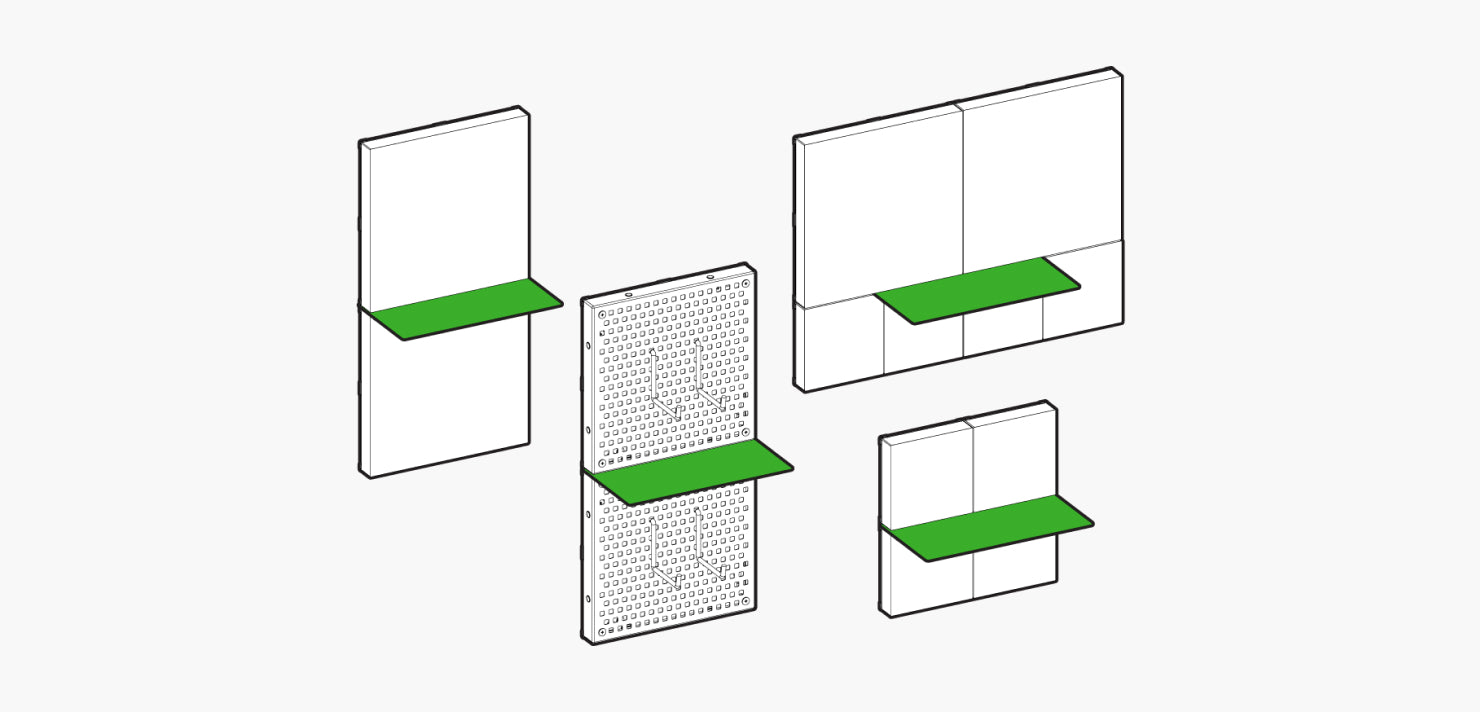

For shelf installations in between panels. Use this method if there will be panels installed above and below your shelf.

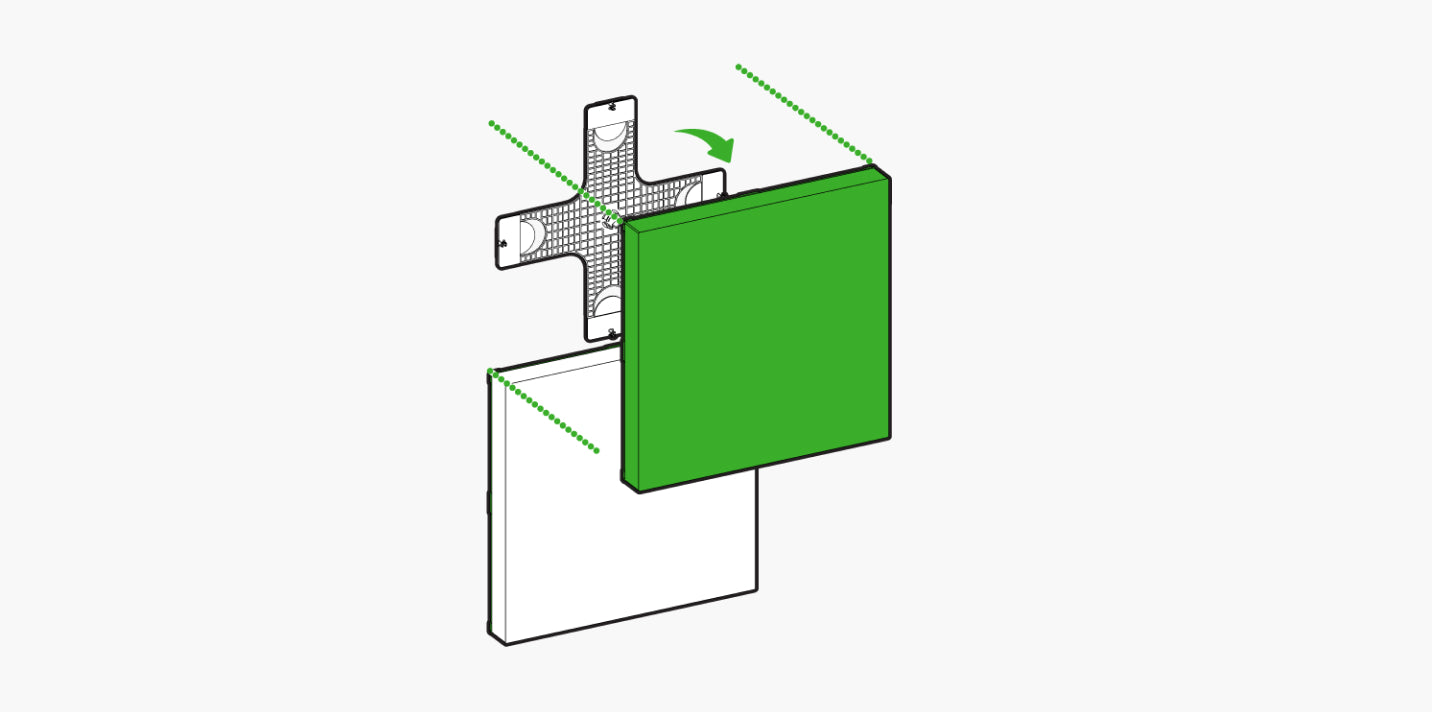

1. Pull off the top panel gently, leaving the mounting plate attached to the wall.

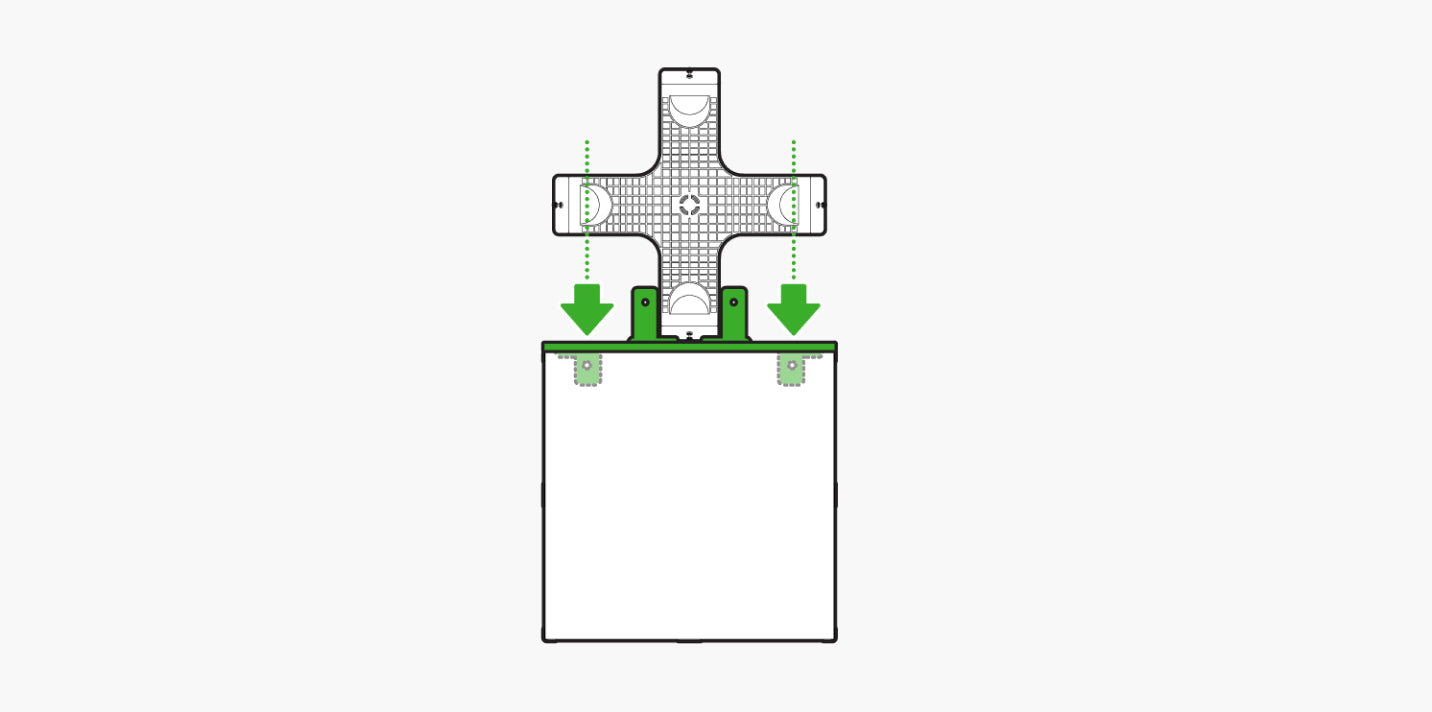

2. Slide the short prongs of the shelf into the top of the bottom panel.
3. Use a pencil to mark the top two holes of the shelf - this is where the anchors will go.

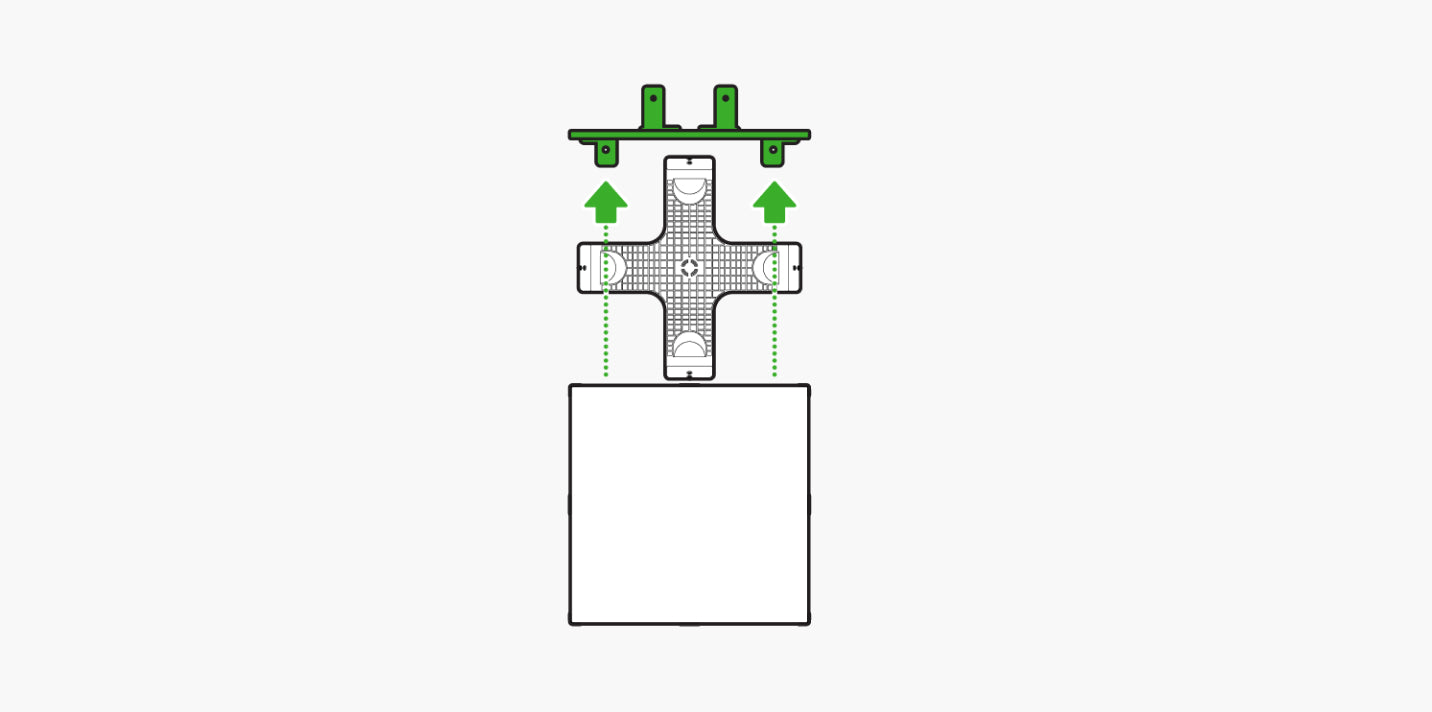

4. Slide the shelf out of the bottom panel.

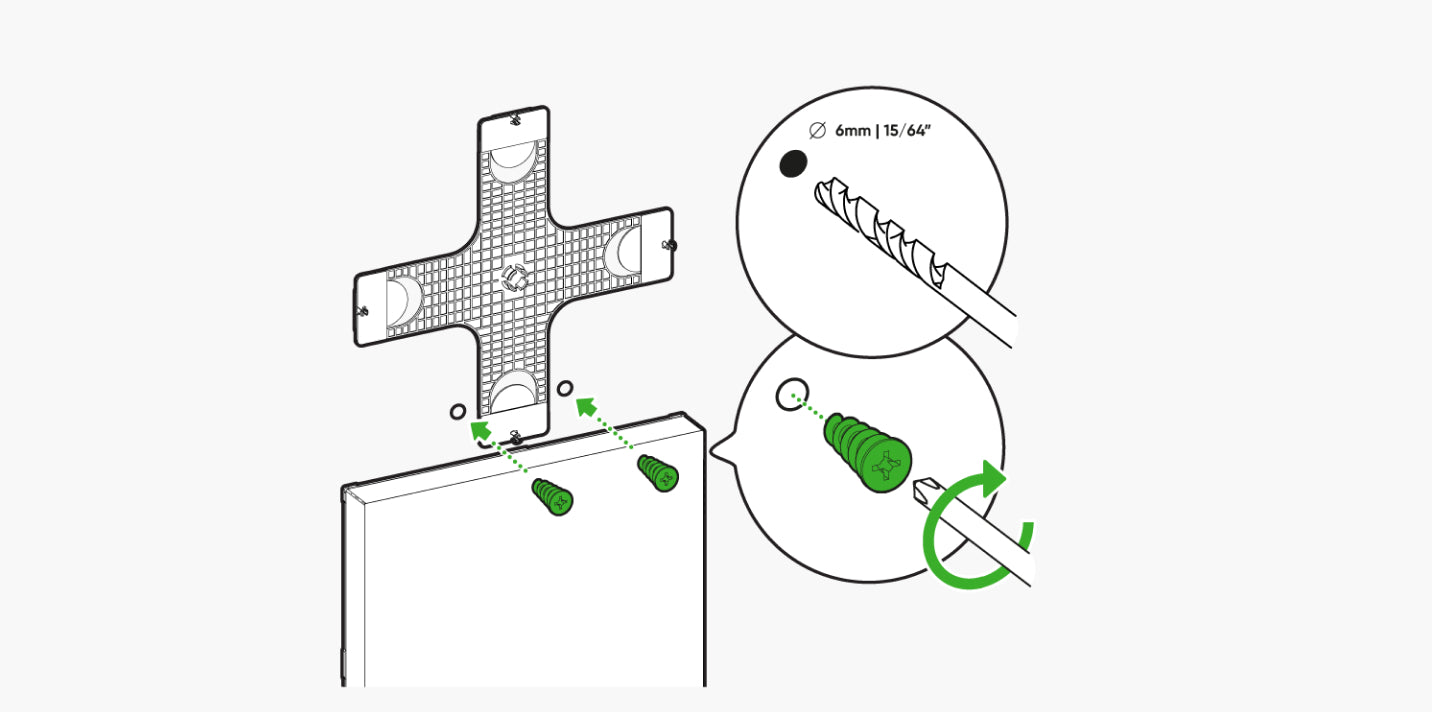

5. Drill holes into the marked areas on the wall.
6. Screw anchors into the drilled holes. For concrete walls, use the concrete anchors. For drywalls, use the drywall anchor. Ensure that the screws are driven in all the way so they do not interfere with your layout.
7. Slide the shelf back into the top of the bottom panel.
8. Drive the screws into the anchors, securing the shelf in place. Ensure that the screws are driven in all the way so they do not interfere with your layout.

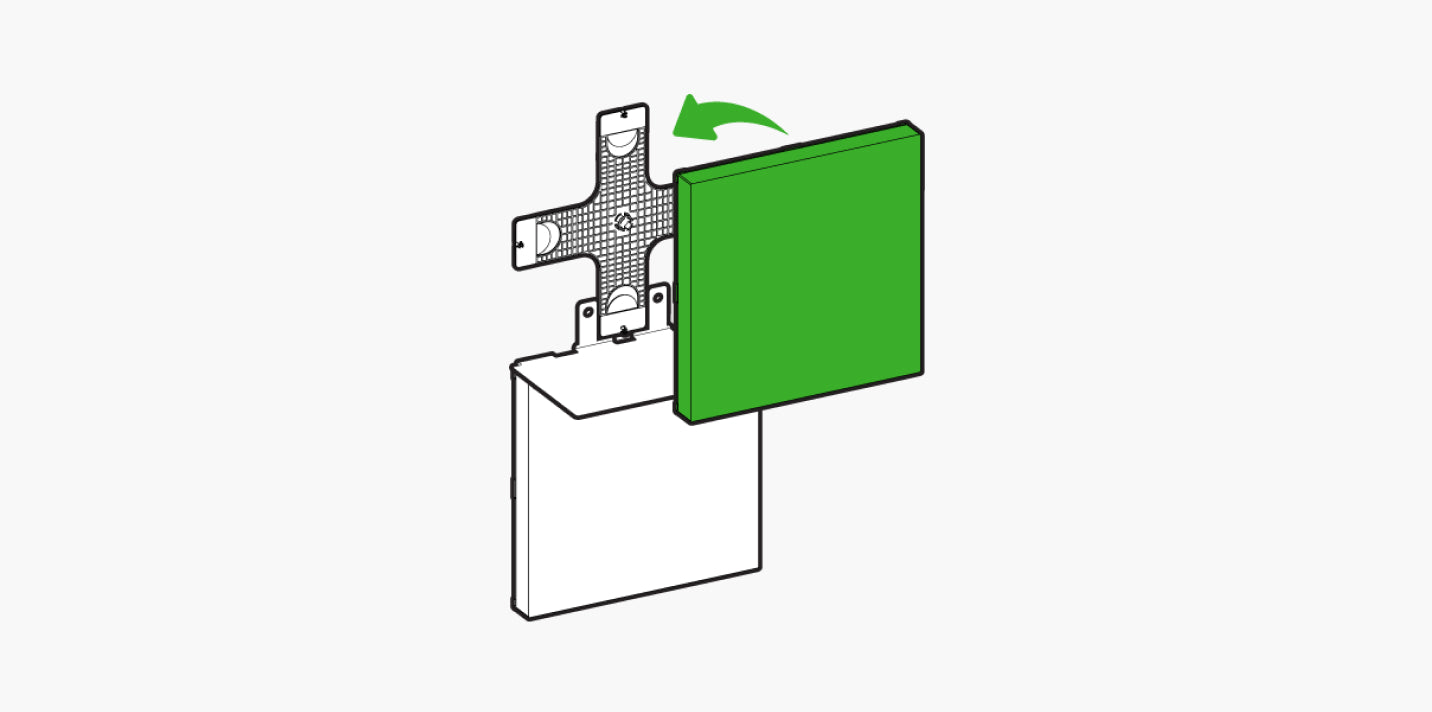

9. Reattach the top panel to the mounting plate.

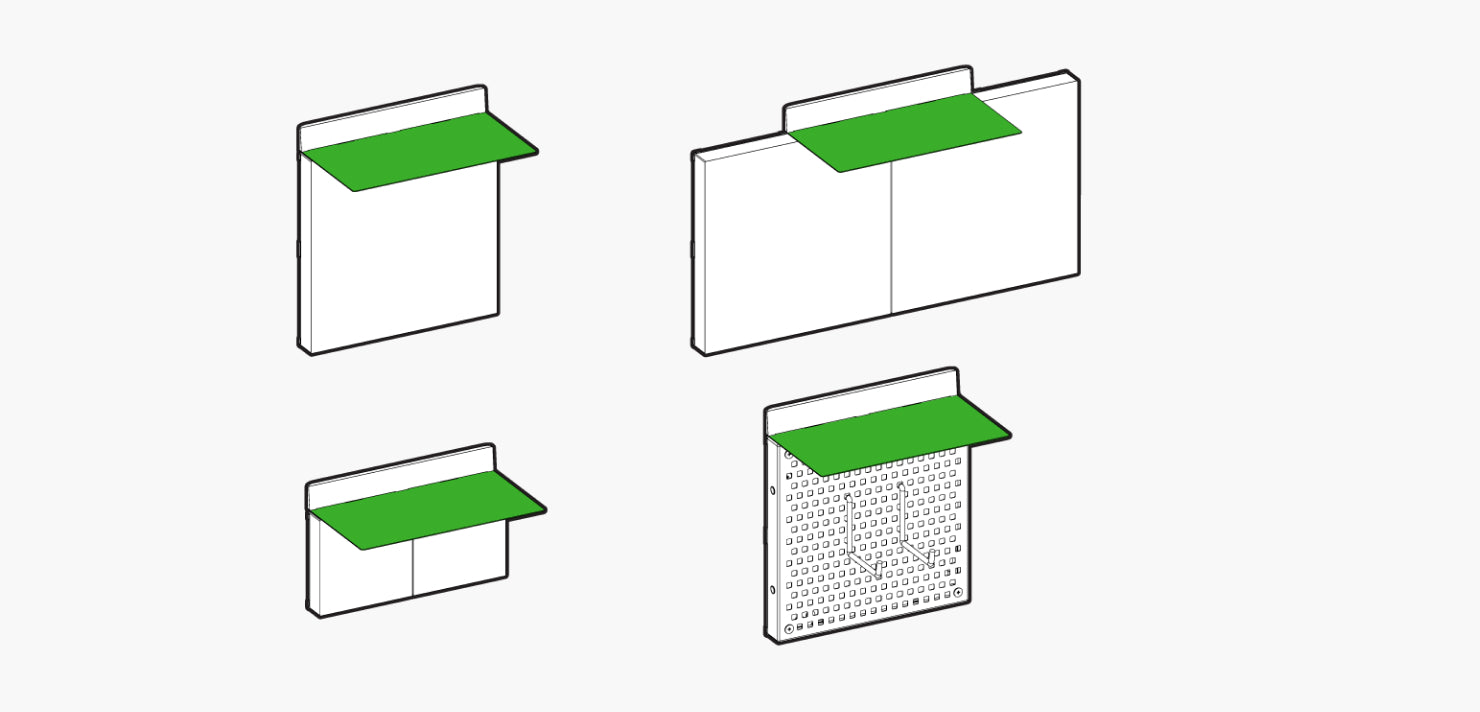

For shelf installations at the top of a layout. Use this method if no panels will be placed on top of your shelf.

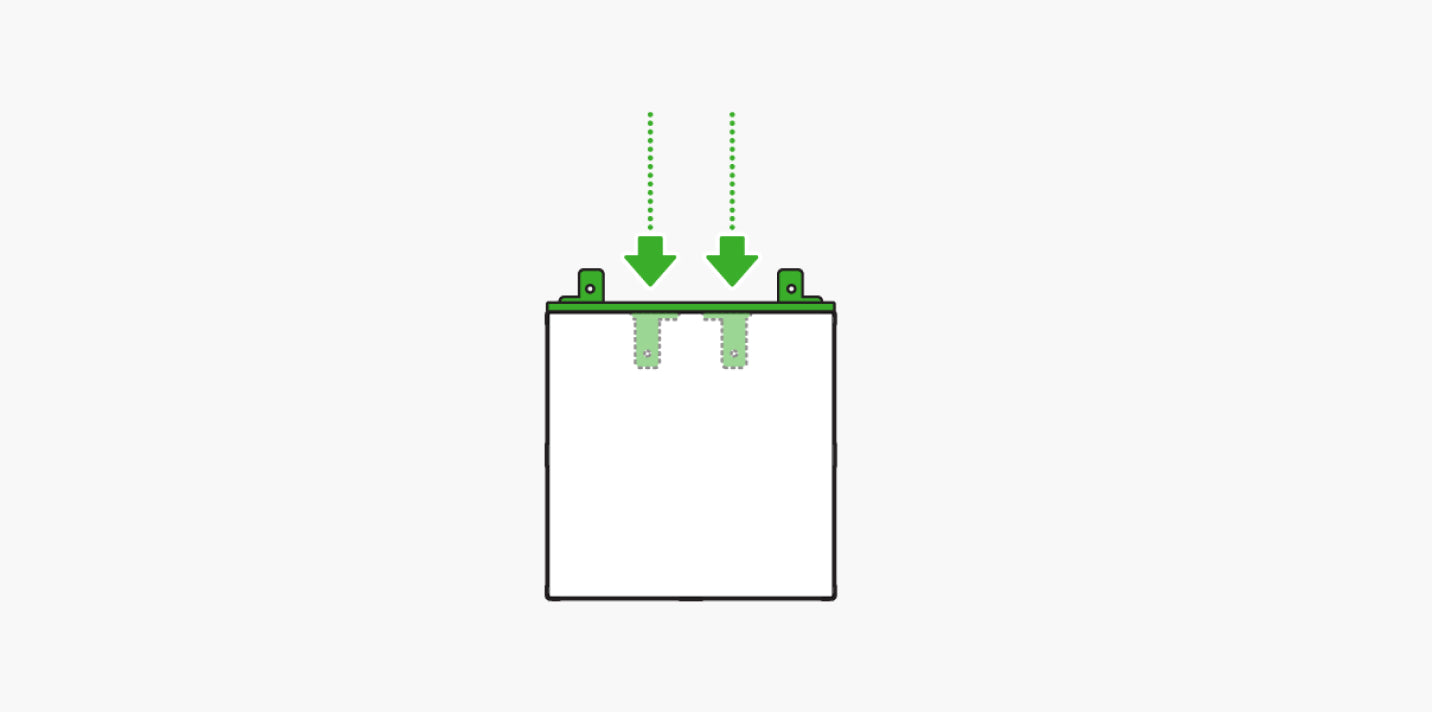

1. Slide the long prongs of the shelf into the top of the panel.

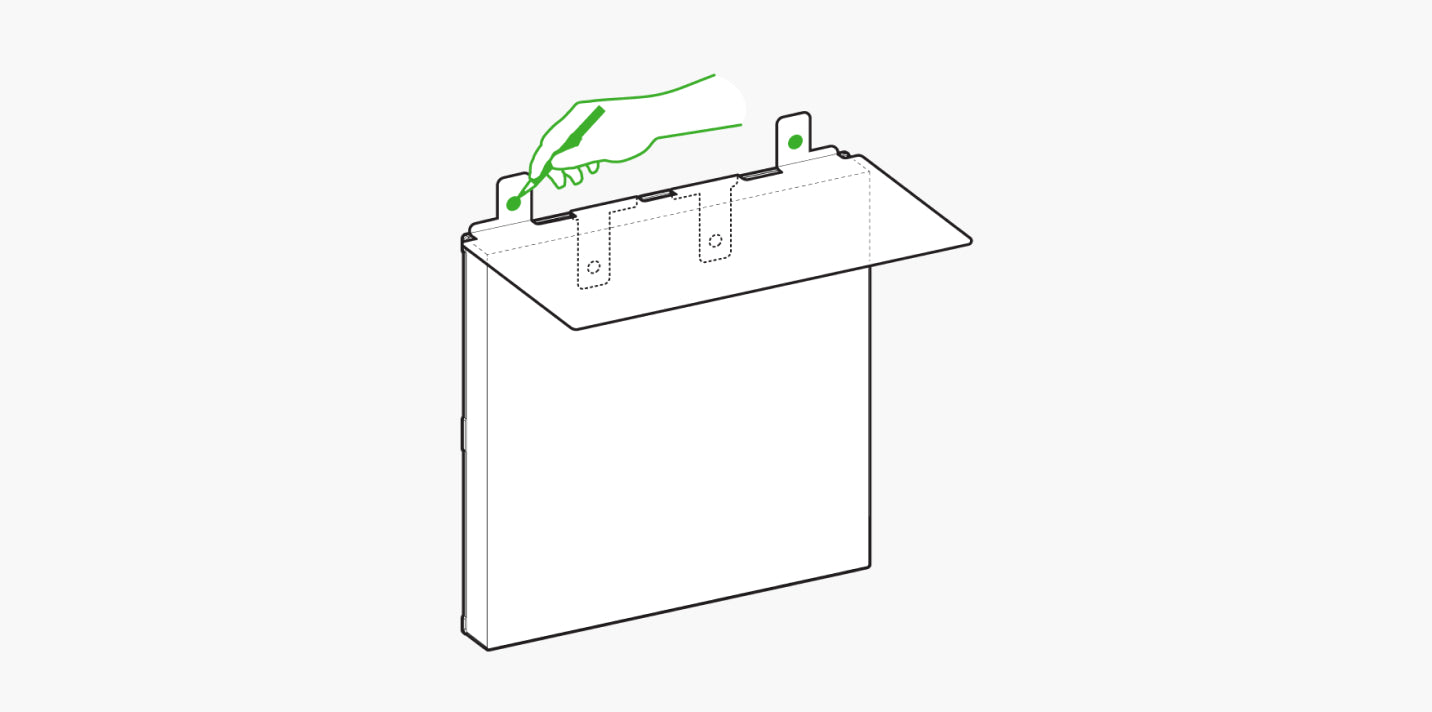

2. Use a pencil to mark the two top holes in the shelf - this is where the anchors will go.

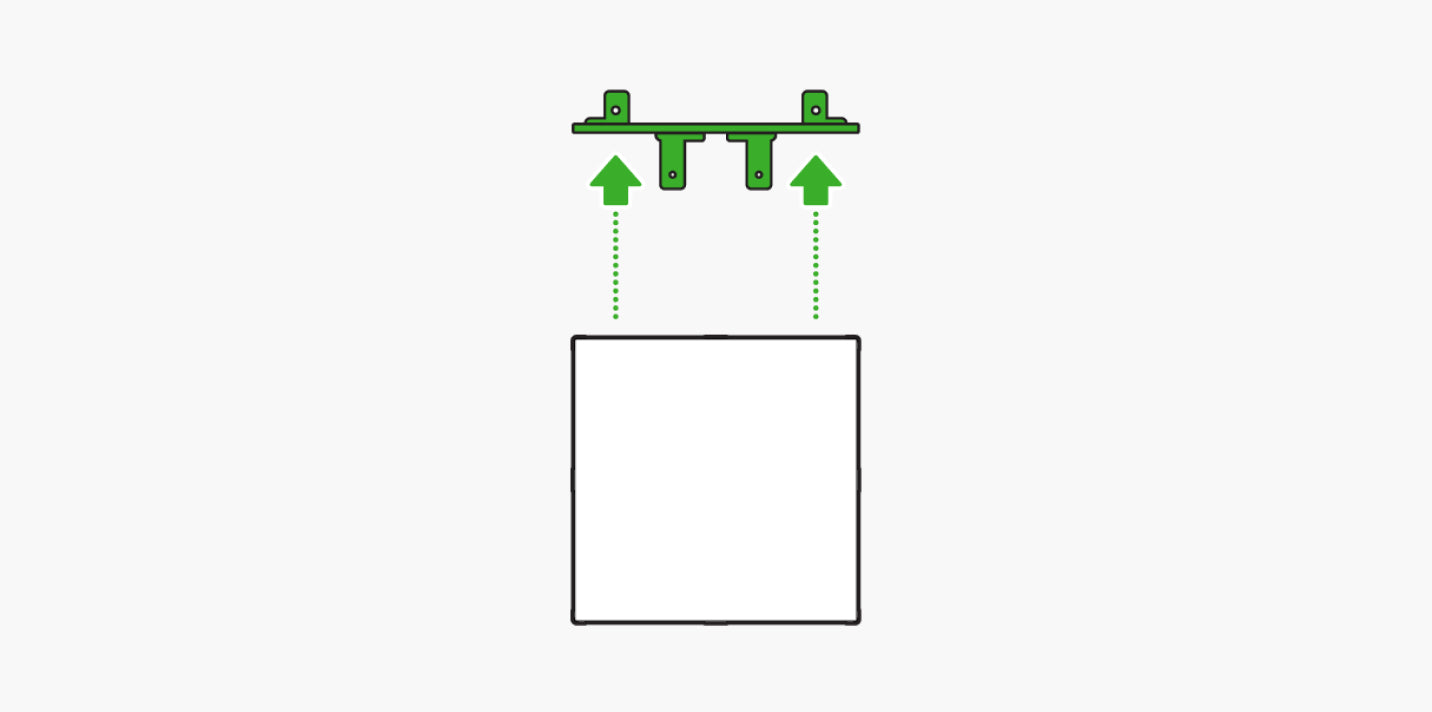

3. Slide the shelf out.

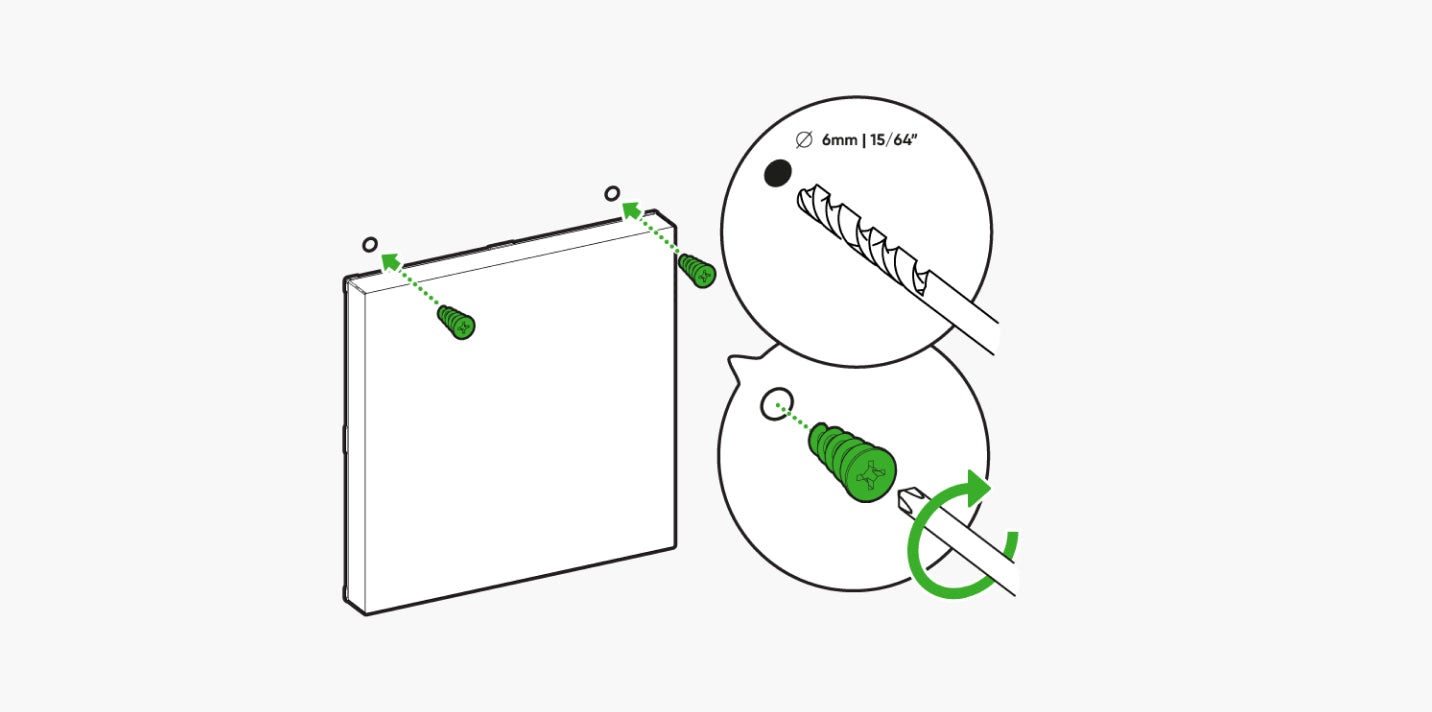

4. Drill holes into the marked areas on the wall.
5. Screw anchors into the drilled holes. For concrete walls, use the concrete anchors. For drywalls, use the drywall anchor.

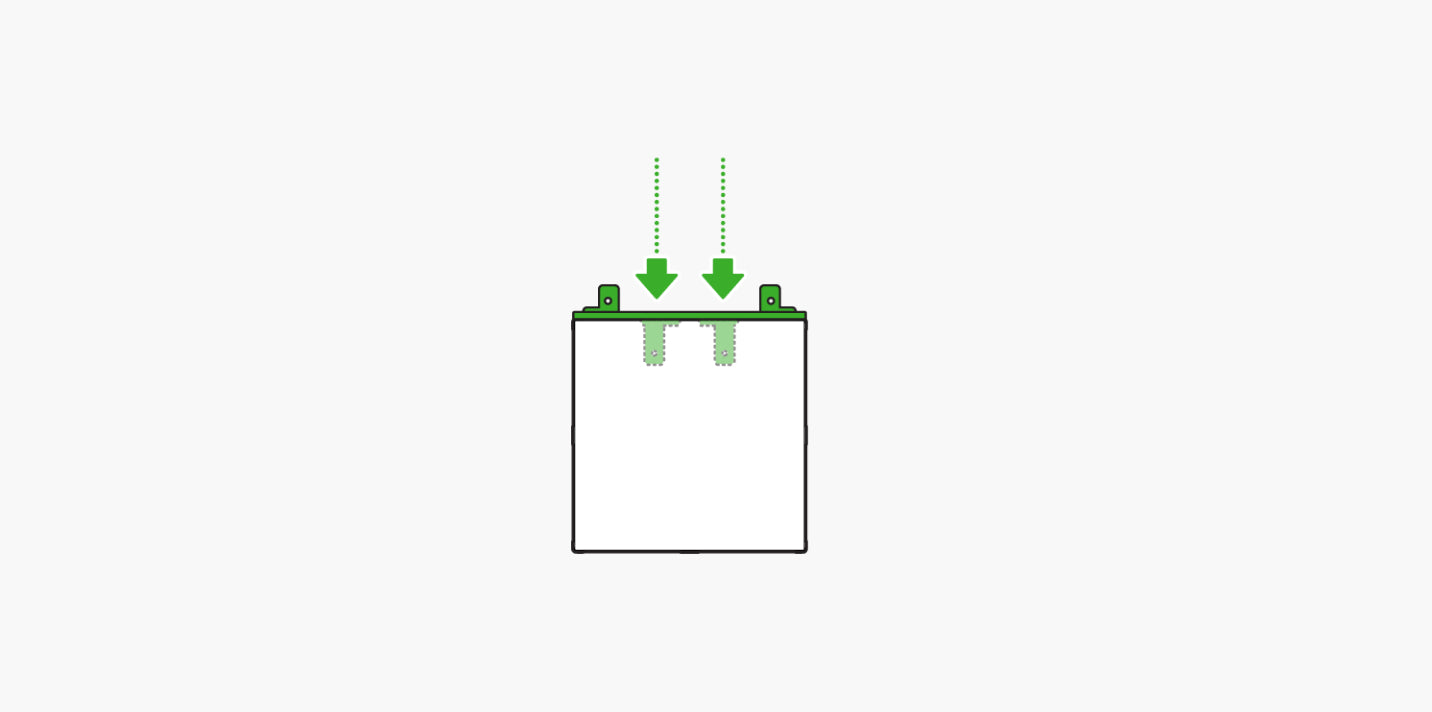

6. Slide the shelf back into the top of the panel.

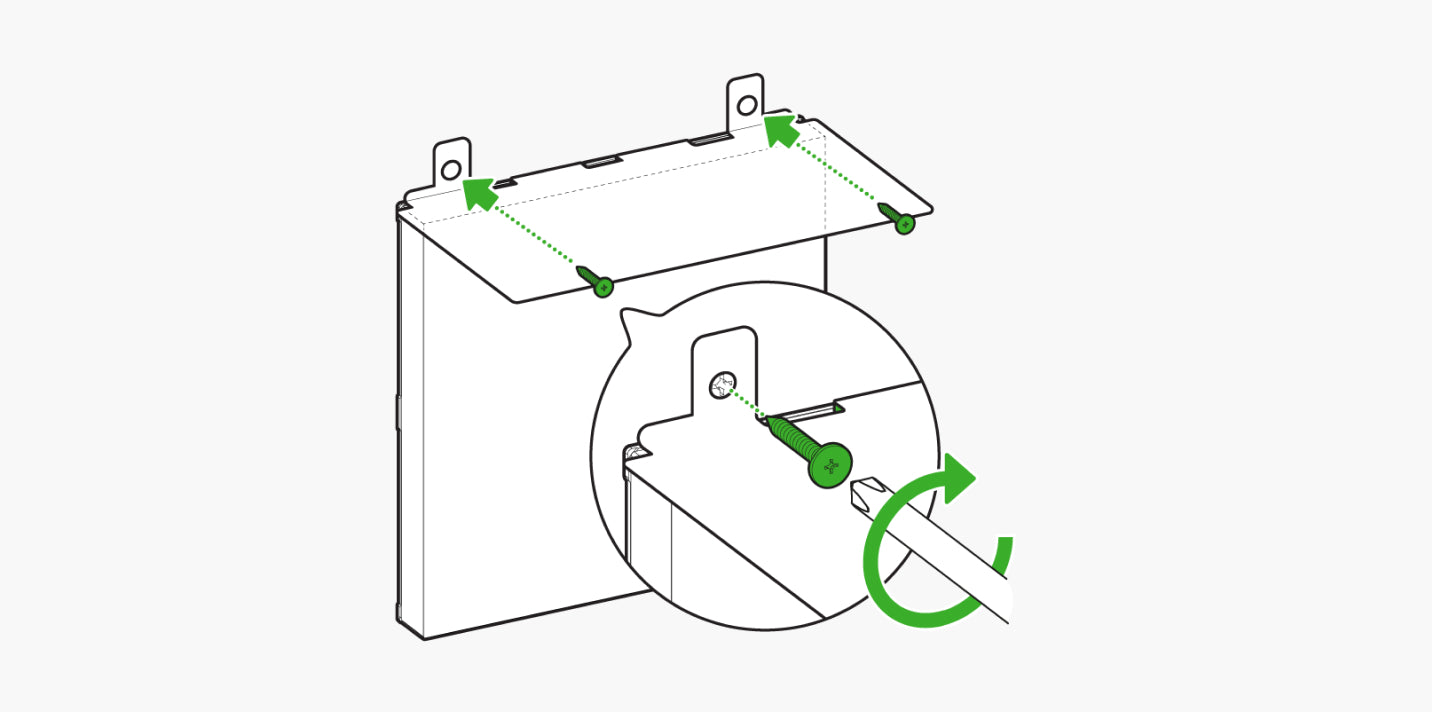

7. Drive the screws into the anchors, securing the shelf in place. Ensure that the screws are driven in all the way so they do not interfere with your layout.

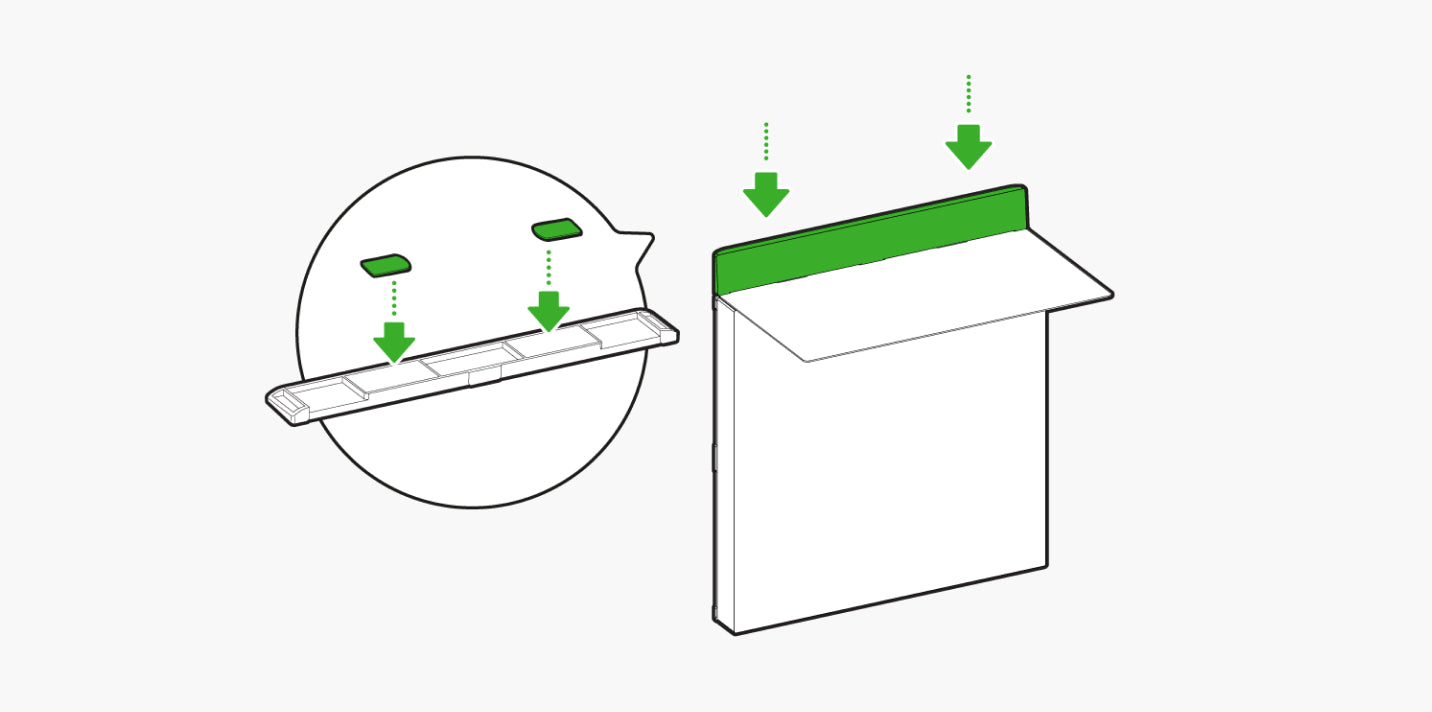

8. Optional: Mount Shelf Cover. Add tape to the back of the shelf cover. Remove the protective liner from the tape and mount it over the shelf prongs.
